passive foot-ankle prosthesis

housing design and continuous displacement mechanism allowing for variable stiffness

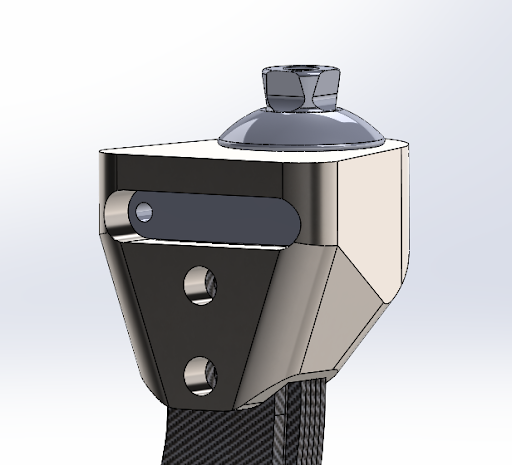

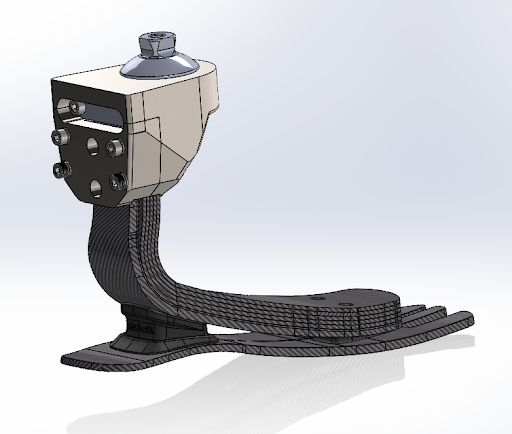

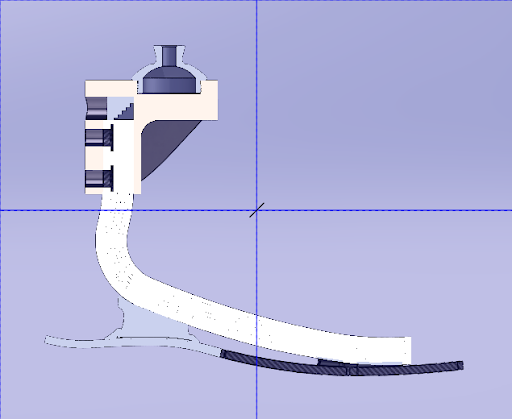

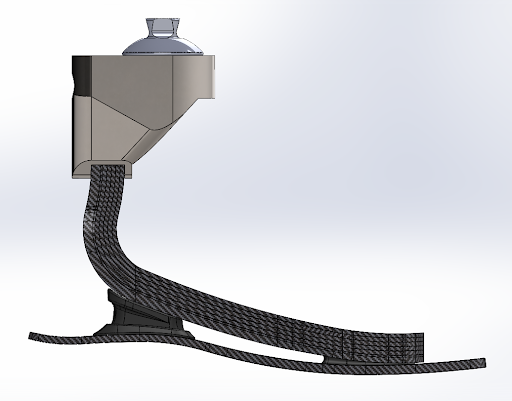

five carbon-fiber stacked springs, all fixed only at the toe end cross-sectional view; variable stiffness mechanism depicted at the ankle back-view final assembled design


@mit media lab: biomechatronics group
  • supervisor: duncan lee
  • project link here
